PK 23501-W
THE SPECIALIST FOR EFFICIENT WASTE, SCRAP, AND RECYCLING CONTAINER SYSTEMS
The PK 23501 W is the answer to the specific needs of inner city waste management companies. A lot of attention was paid to the design of the knuckle boom, where the extension cylinders are mounted inside the boom.
- Very low knuckle boom height prevents damage to the extension system

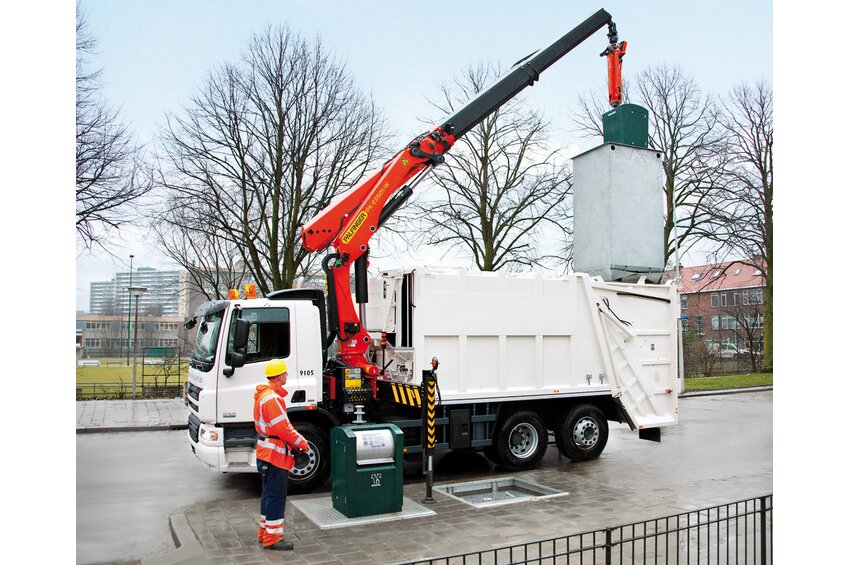

- Perfect for loading- and unloading of underground waste containers
- Perfect appearance and the highest value retention thanks to KTL
- Fast job completion duet to high speed extension system
- High operator friendliness thanks to radio remote control
Technical data
| Max. lifting moment | 22,1 mt |
|---|---|
| Max. lifting capacity | 4000 kg |
| Max. hydraulic outreach | 10,2 m |
| Slewing angle | 400° |
| Slewing torque with 1 gear | 2,8 mt |
| Stabiliser spread (std) | 5.0m m |
| Width folded | 2,55 m |
| Max. operating pressure | 300 bar |
| Pump capacity | 65 - 90 l/m |
| Weight | 2974 kg |
Technical data

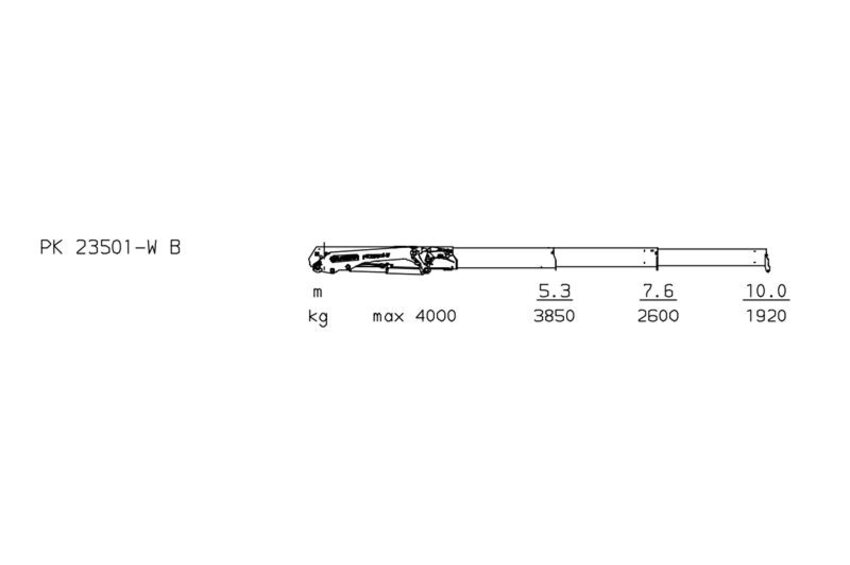

| Lifting moment | Outreach | Slewing angle | Slewing torque | Pressure | Pump capacity | Crane weight | Crane height | Crane width | Installation width | Max stroke length | Max. lifting capacity | Load vertical | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | 22.1 mt | 10.2 m | 400 ° | 2.8 mt | 30.0 Mpa | 65-90 l/min | 2974 m | 2670 mm | 2550 mm | 906 mm | - | 4000 kg | 1920 kg |
