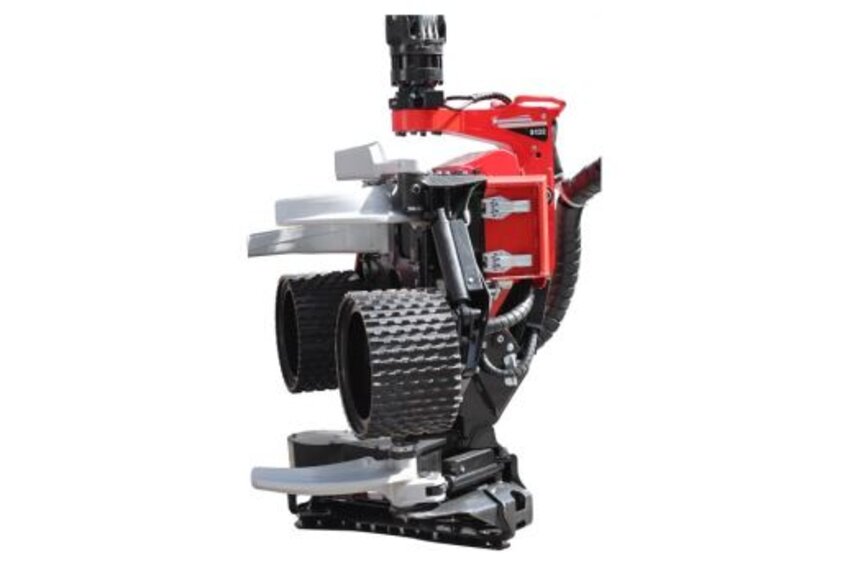

The Komatsu S132 is a flexible and adaptable head - reliable and efficient even in the most difficult forests. With powerful tractive force and effective delimbing the harvester head delivers high productivity no matter the assignment.
Technical data
| Weight | 1.380 kg |
|---|---|
| Max. hydraulic pressure | 28 MPa |
| Height | 2.170 mm |
| Width | 1.689 mm |
| Opening knives | 690 mm |
| Roller opening | 625 mm |
| Fell/cut diameter max. | 710 mm |
| Feed speed | 0-5 m/s |
| Gross feed force | 21,0/26,1/28,7 kN |
| Delimbing knives, number | 4 |
| Roller opening | 625 mm |
| Saw bar | 82,5 cm |
| Saw motor | 19 cm³/rev |
| Max. hydraulic flow | 330 l/min |
